Controller case

Remote controller over ESP-NOW

By Marcin Ożóg · Fits AtlasCube Controller · AMOLED 240×296 · Updated 2026-10-11 · License: CC BY-NC-SA 4.0

Photos

Controller case
Controller case
Controller case
Controller case
Controller case
Controller case
Controller case

3D preview

Loading 3D view · 2 parts · 186 kB

Drag to rotate · right-drag or two fingers to pan · scroll or pinch to zoom.

About

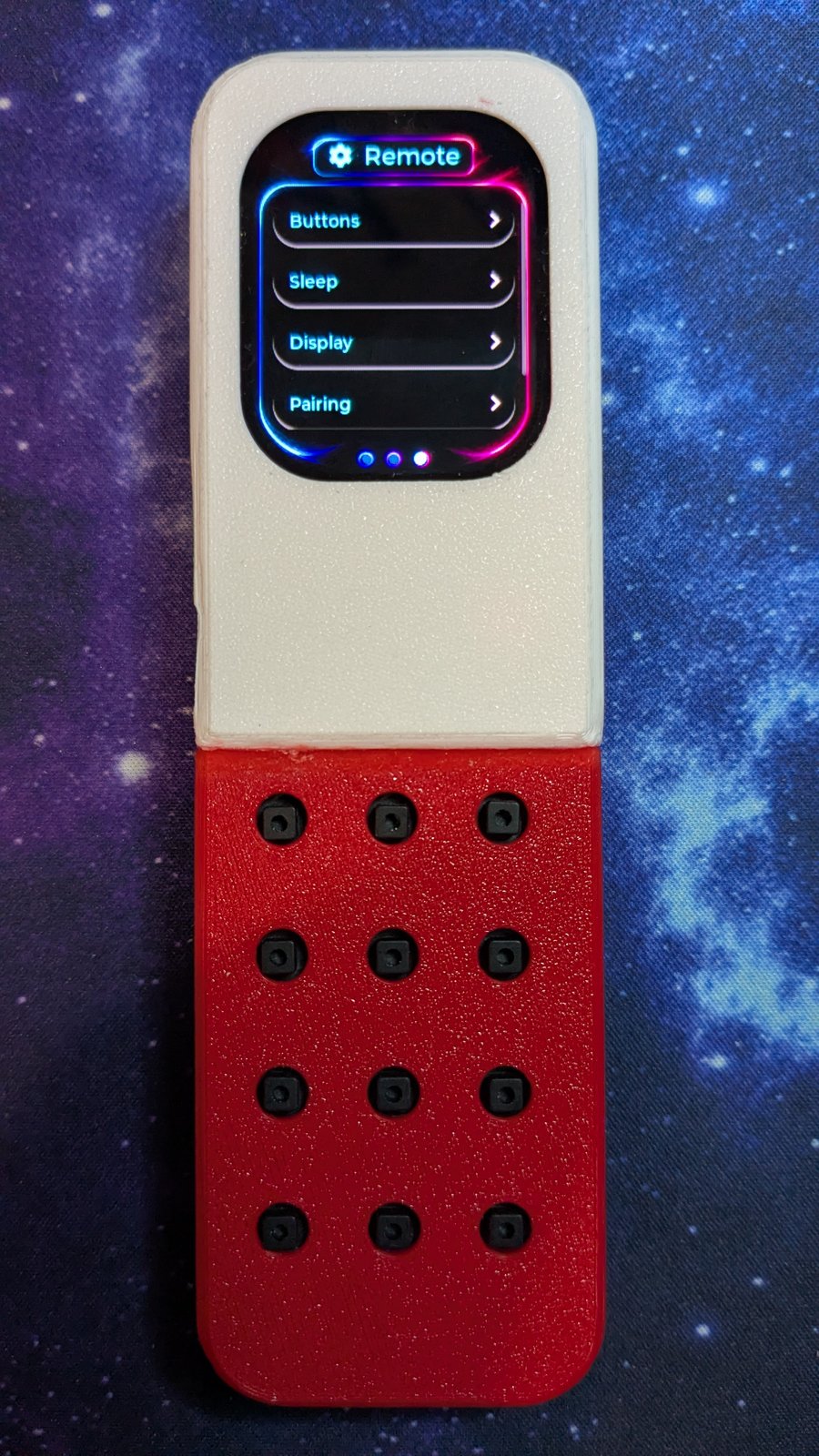

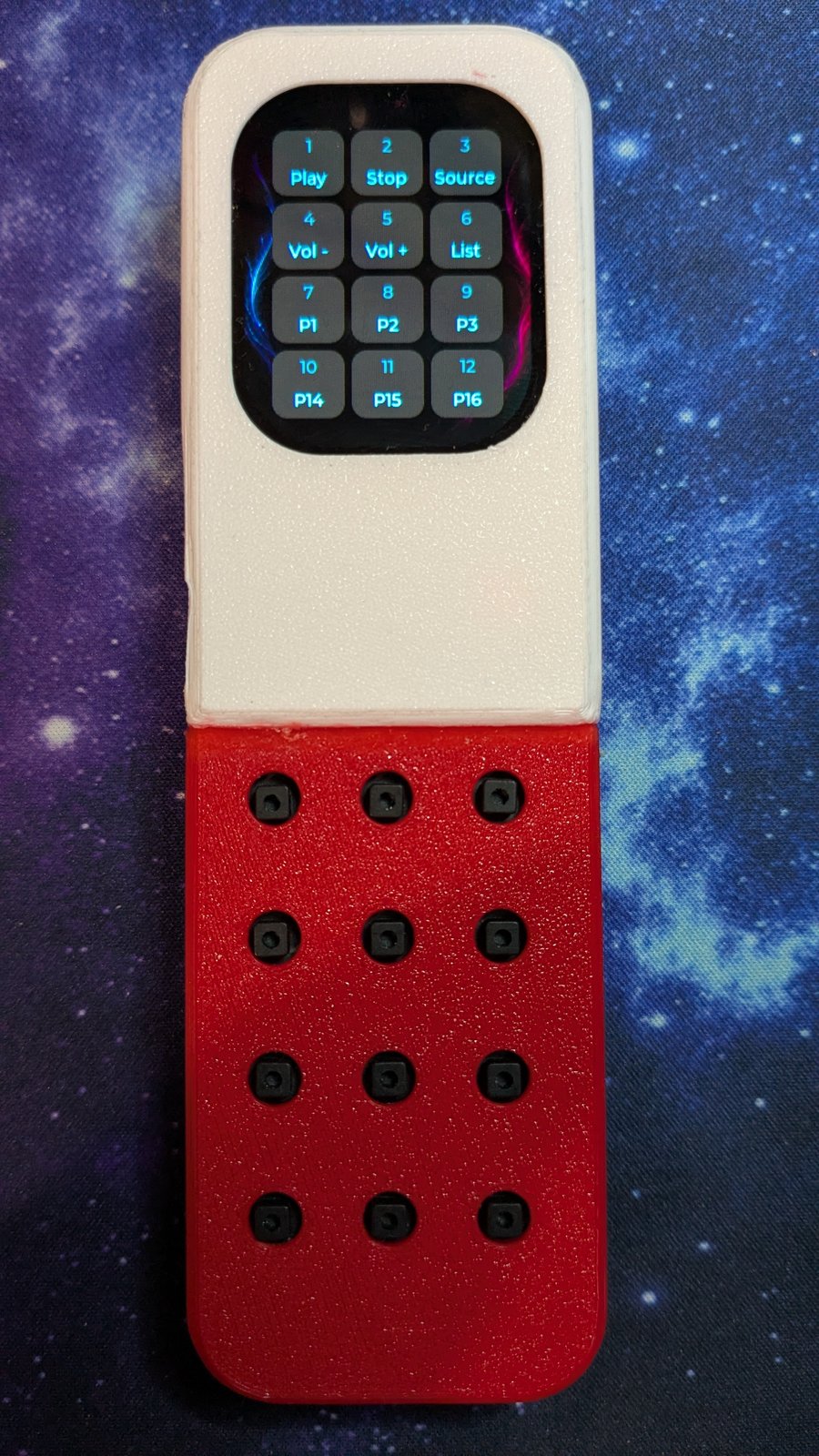

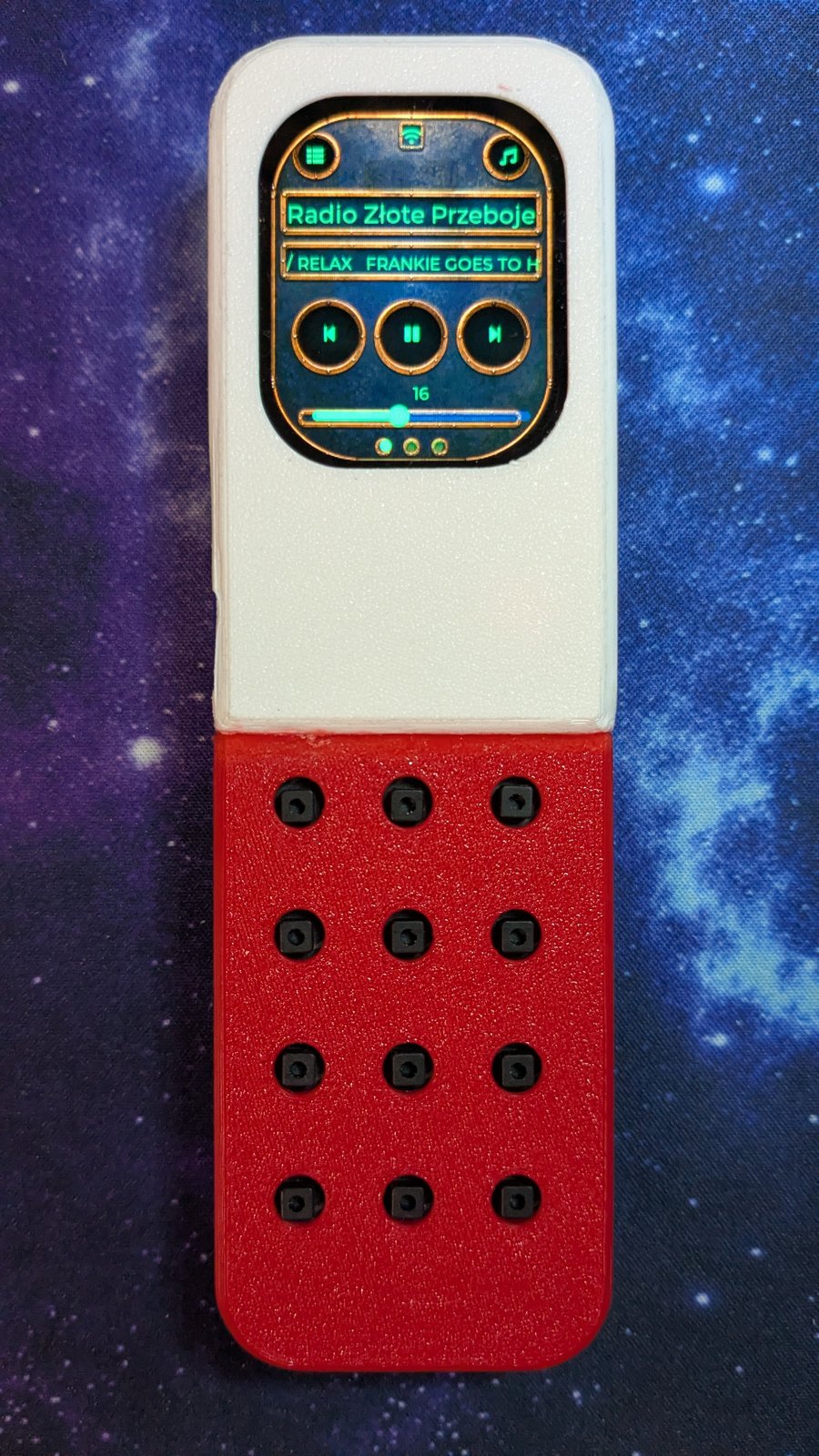

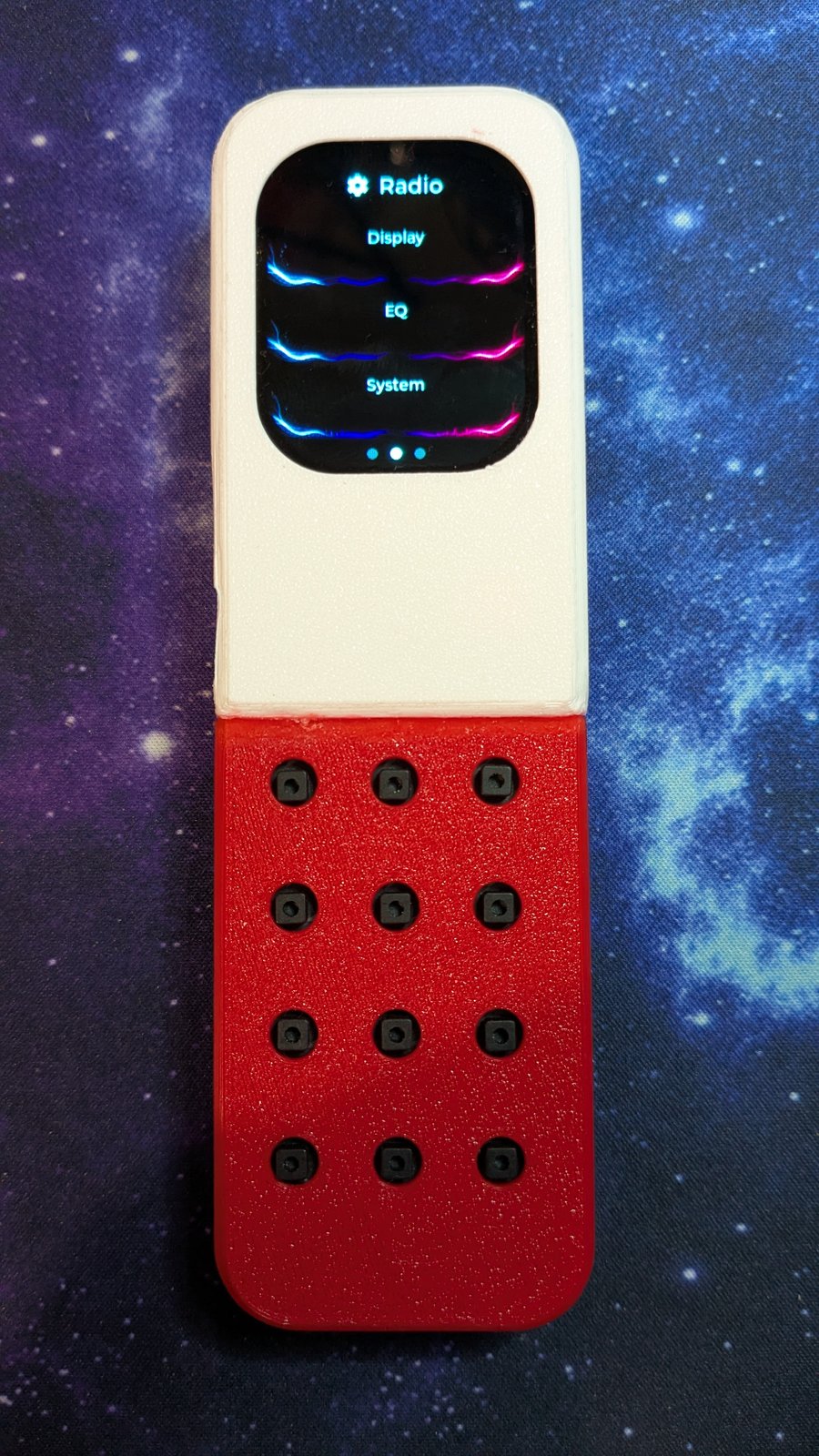

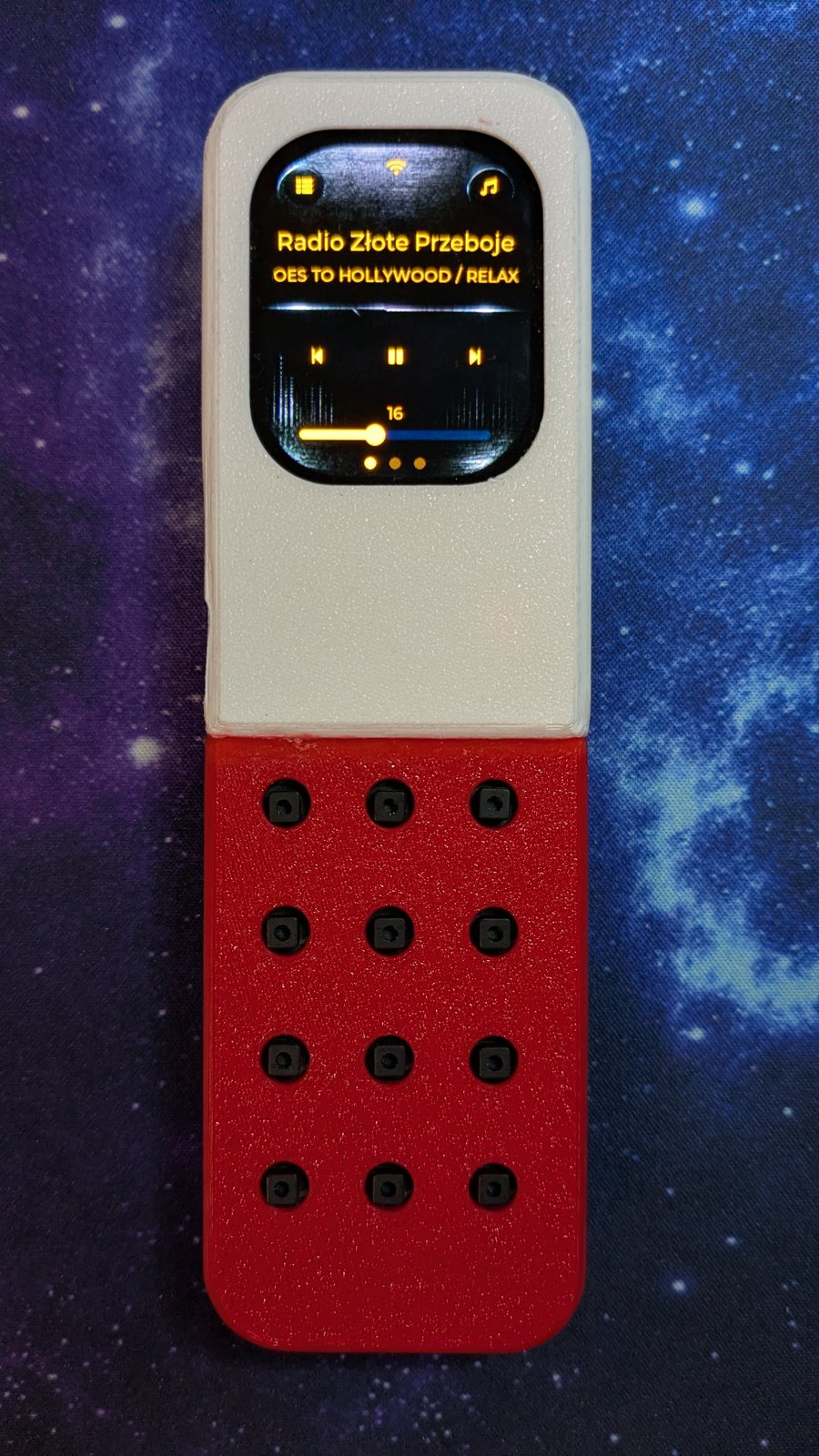

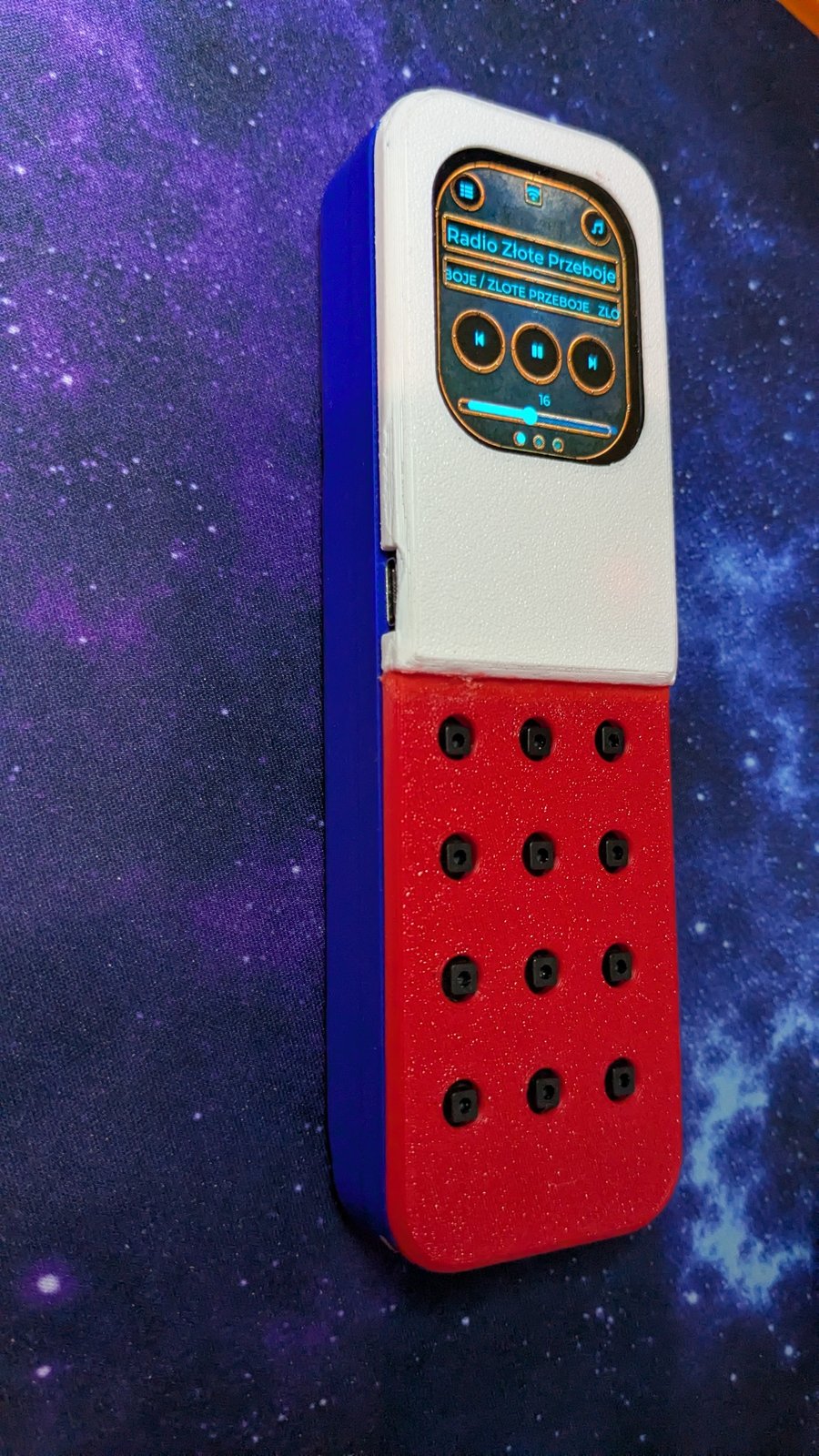

Two-part case for the AtlasCube Controller: a bottom shell and a top made of two pieces — the frame around the 240×296 AMOLED and a plate with a 4×3 grid of key holes.

TODO: which board and battery go inside, and how the halves are held together.

Printing & assembly

Print settings

MaterialPLA
Layer height0.2 mm
Infill15%
Supportsnone
Size46.5 × 154.5 × 19.5 mm (bottom shell)

You will also need

Files

bottom.3mf 3MF
60 kB · 2026-10-11 · 15 downloads Download
bottom.f3d Fusion 360
192 kB · 2026-10-11 · 13 downloads Download
bottom.step STEP
48 kB · 2026-10-11 · 11 downloads Download
top.3mf 3MF
126 kB · 2026-10-11 · 10 downloads Download
top.f3d Fusion 360
649 kB · 2026-10-11 · 14 downloads Download
top.step STEP
111 kB · 2026-10-11 · 13 downloads Download
Download all (ZIP, 1.2 MB)

3MF / STL go straight into the slicer (3MF keeps several bodies in one file). STEP opens in any CAD program, Fusion 360 files keep the full design history for changes.
