LED matrix

LED matrix diffusor

By Marcin Ożóg · Fits 2× WS2812 16×16 LED matrix, 115 × 115 mm · Updated 2026-10-11 · License: CC BY-NC-SA 4.0

Photos

3D preview

Loading 3D view · 1 part · 198 kB

Drag to rotate · right-drag or two fingers to pan · scroll or pinch to zoom.

About

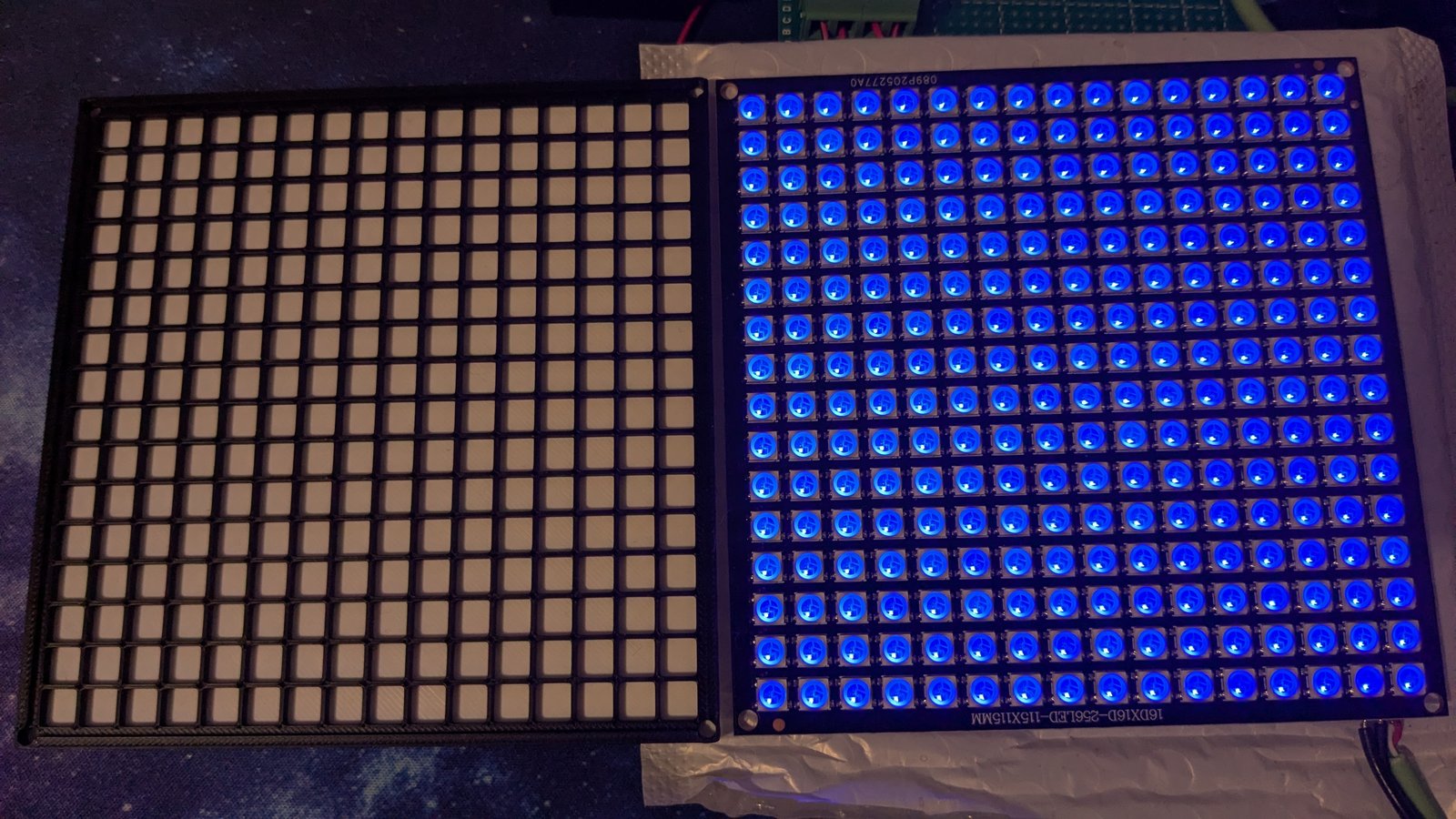

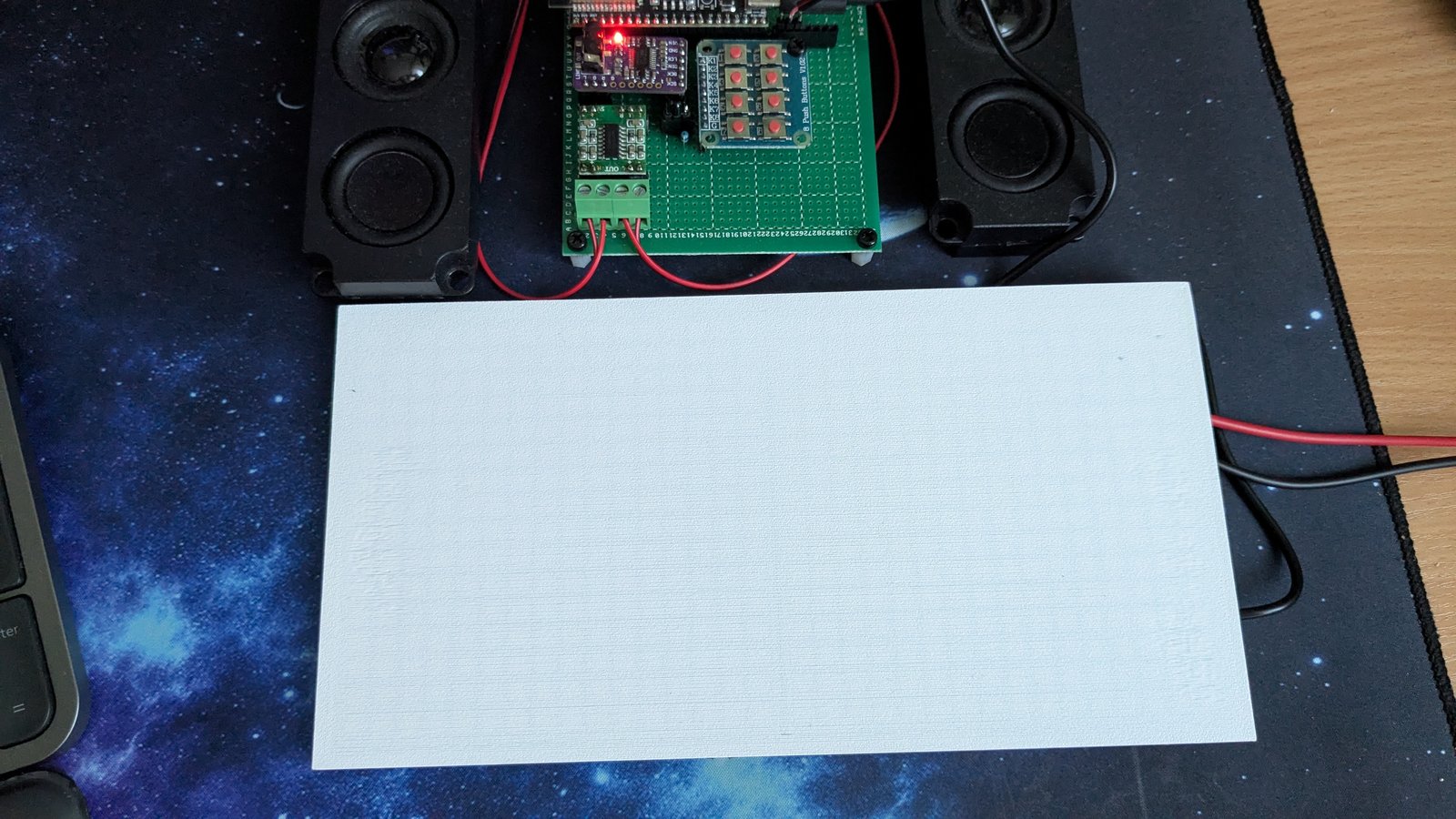

Grid frame and diffuser for two 16×16 WS2812 matrices side by side — the 115 × 115 mm panels marked 16D×16D-256LED-115×115MM on the back — as driven by the AtlasCube LED-matrix VU meter.

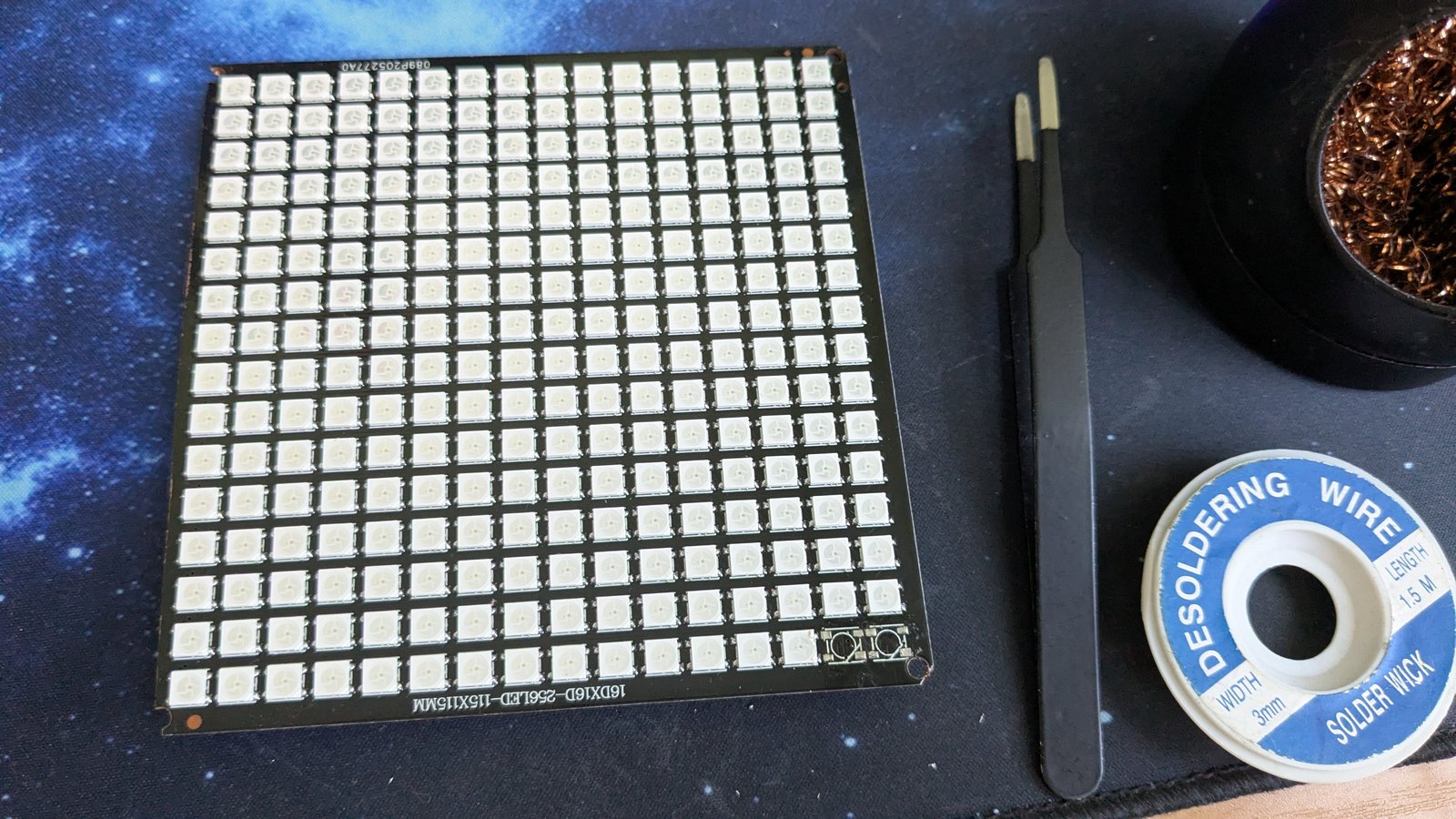

Diffuser for panels with a rim. I slightly filed down the tabs so they would sit closer.

Printing & assembly

Print settings

Material	PLA
Layer height	0.2 mm
Infill	15%
Supports	none
Frame	236 × 123 × 8.4 mm
Diffuser	115 × 115 × 2.1 mm — one per panel

You will also need

TODO: screws, inserts, magnets

Files

LED matrix.3mf 3MF

198 kB · 2026-10-11 · 12 downloads Download

LED matrix.f3d Fusion 360

4.1 MB · 2026-10-11 · 13 downloads Download

LED matrix.step STEP

4.4 MB · 2026-10-11 · 13 downloads Download

LED matrix.stl STL

602 kB · 2026-10-11 · 9 downloads Download

Download all (ZIP, 9.3 MB)

3MF / STL go straight into the slicer (3MF keeps several bodies in one file). STEP opens in any CAD program, Fusion 360 files keep the full design history for changes.
